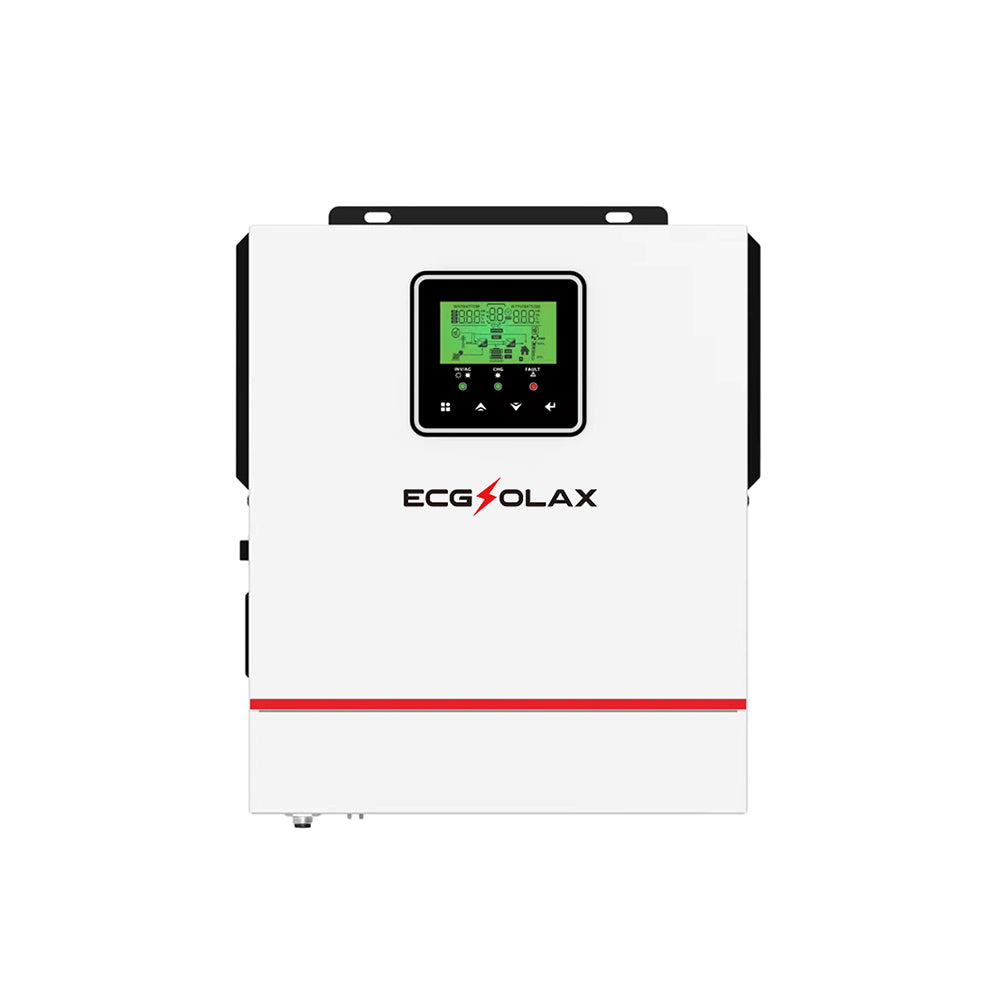

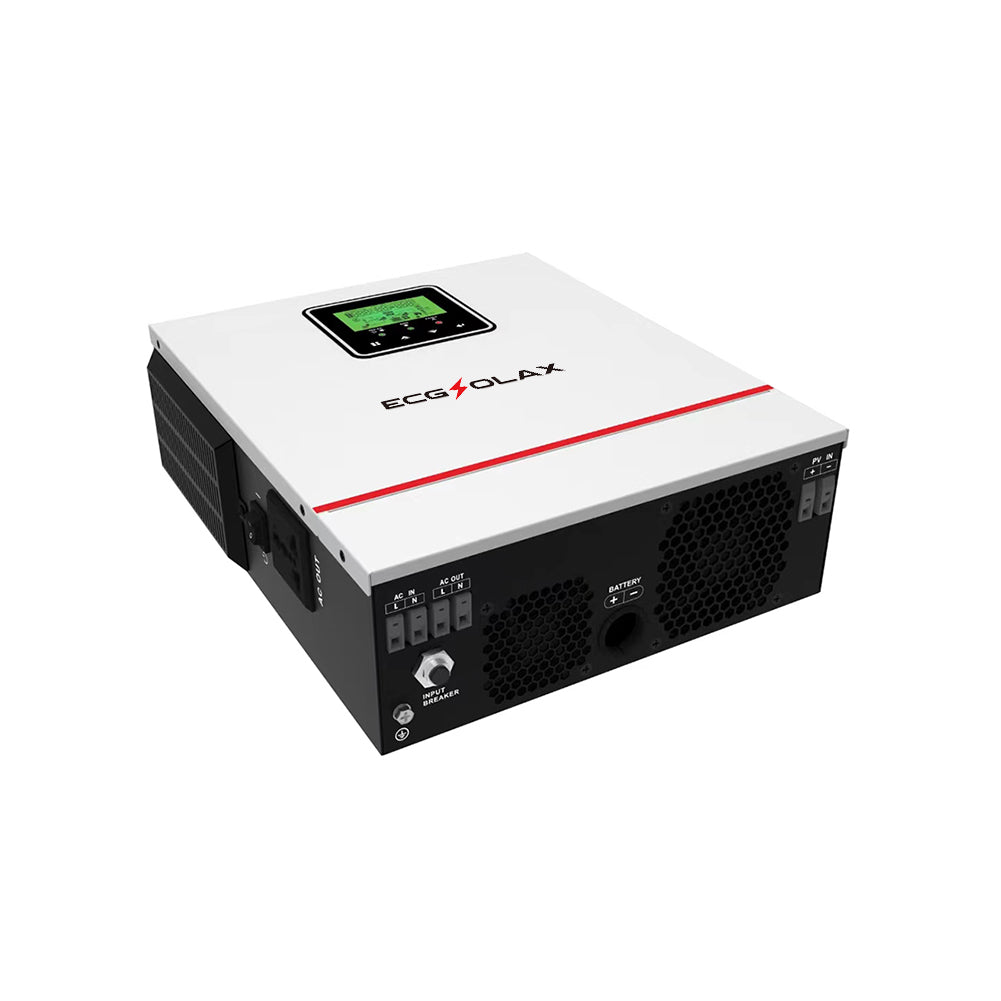

INTRODUCTION
This is a multi-function inverter/charger,combining functions of inverter solar charger and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current AC/solar charger priority,and acceptable input voltage based on different applications.
Features
·Pure sine wave inverter
·Configurable input voltage range for home appliances and personal computers via LCD setting Configurable battery charging current based on applications via LCD setting Configurable AC/Solar Charger priority via LCD setting
·Compatible to mains voltage or generator power
·Auto restart while AC is recovering Overload/ Over temperature/ short circuit protection
·Smart battery charger design for optimized battery performance·Cold start function
Specification
| Model | MIN-1K |
| Phase | 1-phase |
| Maximum PV Array Power | 600W |
| Rated Output Power | 1000W |
| Maximum Solar Charging Current | 40A |
| Maximum(AC+ Solar )Charging Current | 80A |
| PV Array MPPT Voltage Range | 20~150VDC |
| Max. PV Array Open Circuit Voltage | 150VDC |
| Maximum AC Input Current | 30A |
| Nominal Operating Frequency | 50/60Hz |
| Max AC Input Voltage | 300VAC |
| Nominal Output Voltage | 220/230/240VAC |
| Output Wavefrom | Pure sine wave |
| Efficiency(DC to AC) | 94% |
| Nominal DC Input Voltage | 12VDC |
| PHYSICAL | |
| Dimension,D * W * H | 286*240*91 |
| Net Weight(kgs) | 3 |
| ENVIRONMENT | |
| Operating Temperature | ﹣10°C to 55°C |
