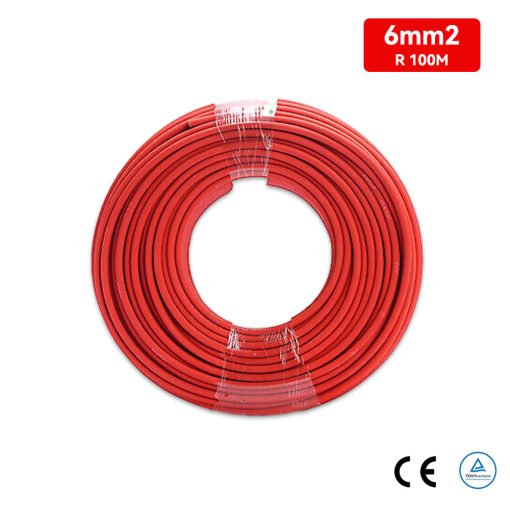

Description
These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the “inverter”. They operate at dc voltages and provide long life in exposed conditions.
Specification
| Materials | |
| Conductor | Tinned copper wire |
| Insulation | XLPO |
| Jacket | XLPE |
|
Mechanical |
|
| Wire size range | 6.0 mm2 10 AWG |
| Rated temperature | -40~ 90 |
| Rated Rating | AC:0.6-1.0KV DC:1.8kv (TÜV CABLE) AC: 0.6KV(UL CABLE) |
| Weathering Resistance | Sun Resistant |
| Standard | TÜV: 2PfG 1169 08.2007 UL: 4703 |
| Color | Black |
| Conductor Construction（n/mm) | TXR84/0.30 |
| Conductor Stranded OD.(mm) | 3.42 |
| Insulation Min.Wall Thickness (mm) | 0.8 |
| Sheath Min.Wall Thickness (mm) | 0.80 |
| Cable OD.(mm) | 7.20 |
| Conductor MaxResistance AT20°C(?/km) | 3.30 |
| Current Araaing Capacity AT60°C(A) | 70 |
