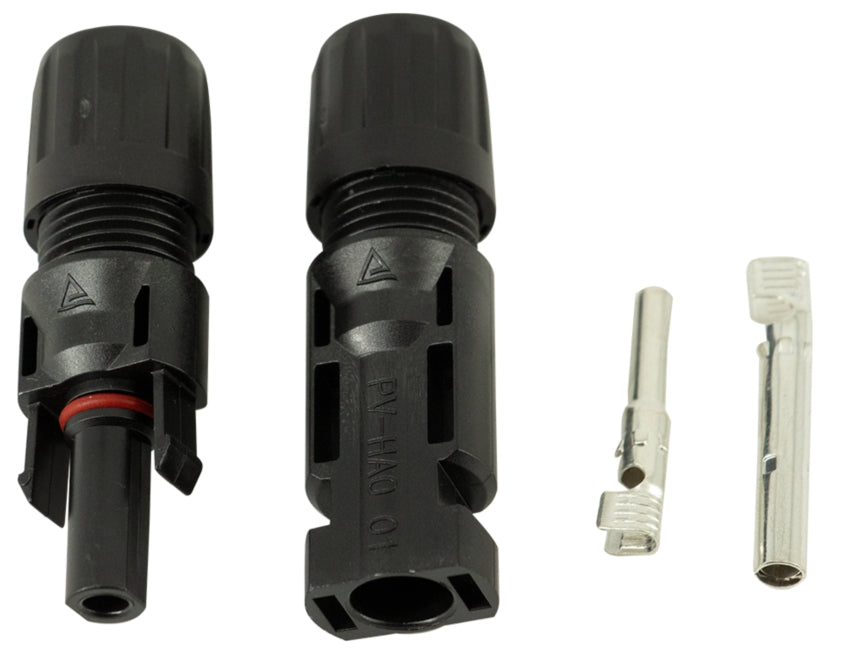

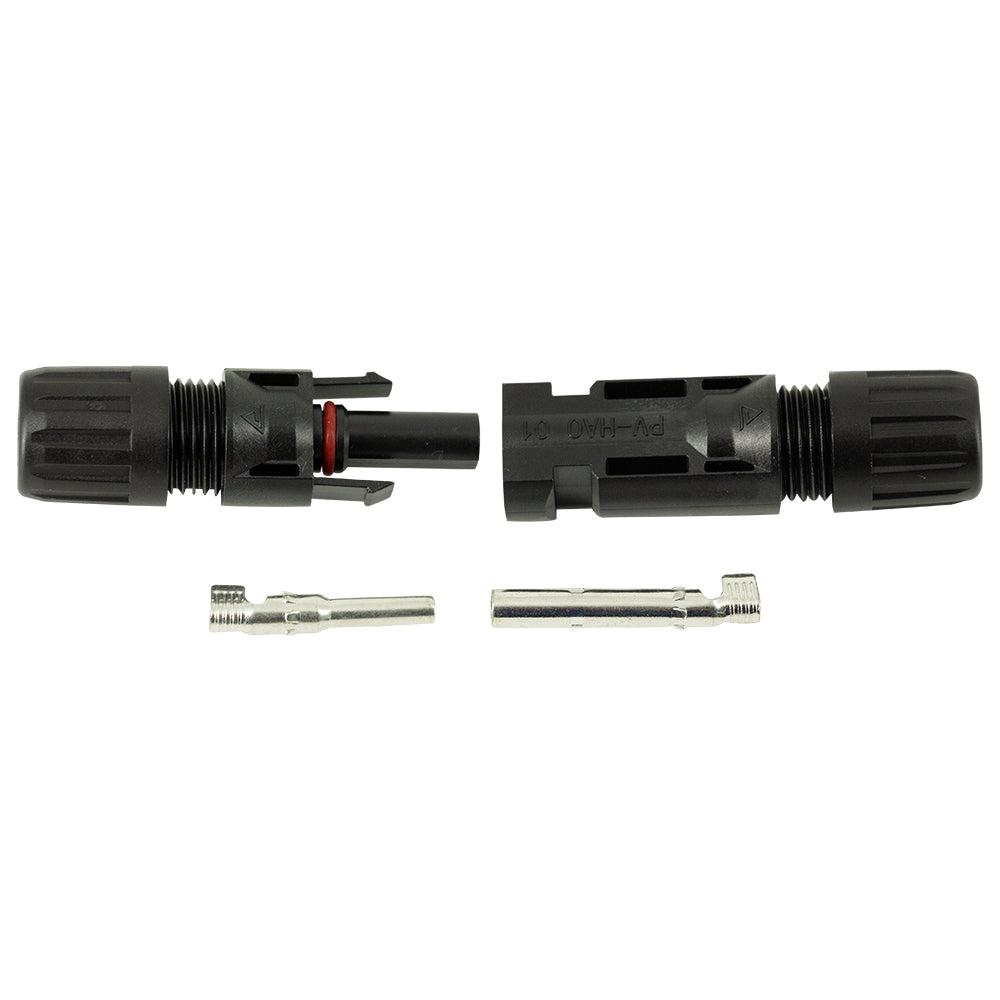

100Pair MC4 Solar DC Connector IP67 Waterproof Male Female Connector Use for Solar Panel Cable

Description

MC4 Solar DC Connector IP67 waterproof male female connector use for Solar Panel Cable is worked for the PV system to connect solar panel and combiner box. MC4 Connector is compatible with Multic Contact, Amphenol H4 and other suppliers pv connectors, it can be suitable to solar wires 2.5mm2, 4mm2 and 6mm2. Our advantage is quickly and reliable connection, UV resistance and IP67 waterproof capacity, can work outdoor for 25years.

**Join ECGSOLAX, to Lower your solar power cost!**

Technical Data

Compatible Size : 2.5/4/6mm2 (14/12/10AWG) cable

Rated Voltage : 1000VDC

Rated Current : 30A

Material : Tinned Copper, PPO

Contact Resistance : <1mΩ

Waterproof Class : IP67

Flame Class : UL94-V0

Ambient Temperature : -40℃~100℃

Advantage

Compatible with Multic Contact PV-KBT4/KST4 and other types MC4 IP67 Waterproof and UV resistant, suitable for outdoor terrible environments Safe ,Simple and Quick on-site processing Mating safety provided by keyed housings Multiple plugging and unplugging cycles Compatible with different size of PV cables commonly High current carrying capacity TUV,CE,ROHS,ISO Certificate
