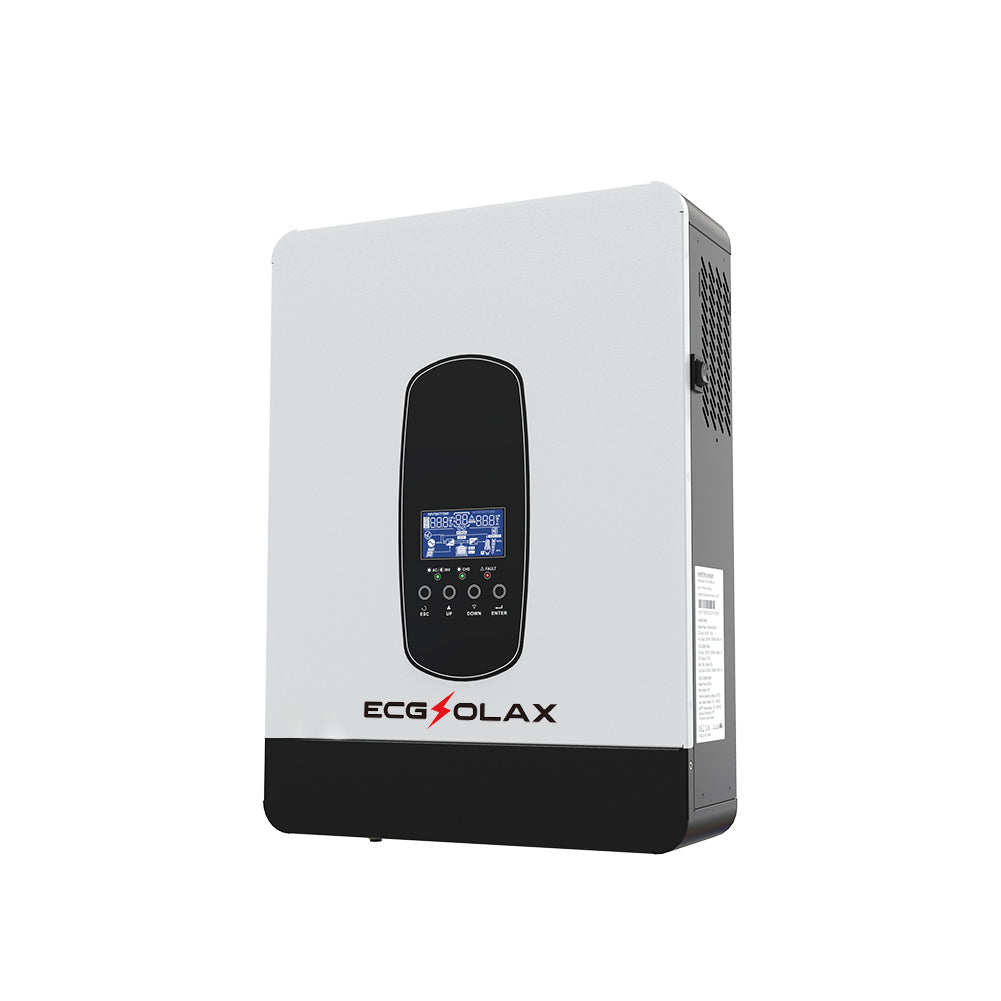

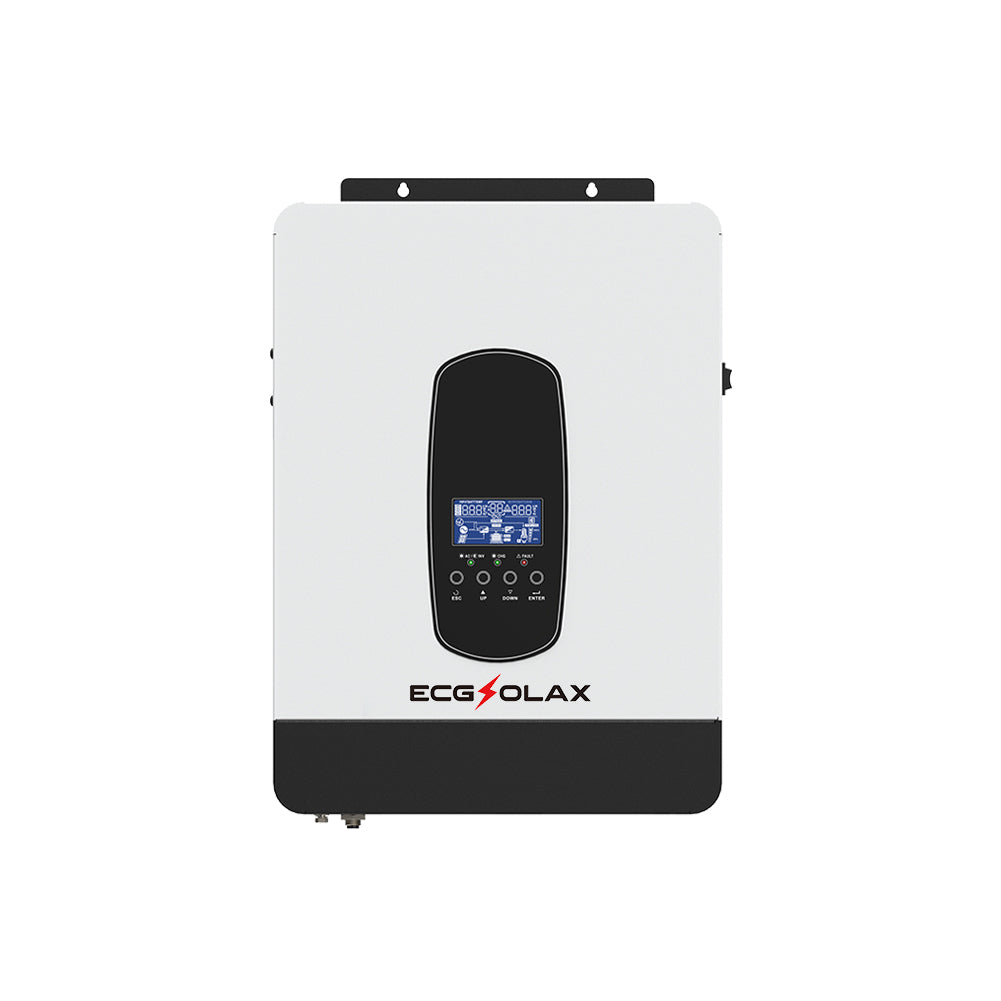

1800 Watt(1.8Kw) 12V Hybrid Solar Inverter Charger
Description
This ECGSOLAX hybrid charge inverter is a combination of a solar charger and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, solar batteries, and the utility grid at the same time.
Features
* Pure sine wave inverter
* Programmable supply priority for PV , battery or Grid
* High PV input voltage range(55~450VDC)
* Built-in Max 80A MPPT solar charge
* Compatibe with lithium-ion LifePO4 battery
* Support BMS communication with Lithium battery
* Smart battery charge design to optimize battery life
* Overload,high temperature,inverter output short circuit protection
* Cold start function
* Intelligent fan speed adjustment
* Built-in anti-dusk kit for harsh environment(optional)
* WiFi&GPRS available for IOS and android
Specification
| MODEL | MIN-1.8K |
| Rated Power | 2200VA/1800W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% |
| Surge power | 4400VA |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) |
| Wave form | Pure Sine Wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 15.5VDC |
| Maximum Battery charge current | 60A |
| SOLAR CHARGER | |
| MAX.PV Array Power | 2000W |
| MPPT Range@ Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum PV Input Current | 18A |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Dimension.D*W*H(mm) | 405X286X98MM |
| Net Weight (kgs) | 4.5kg |
| Communication Interface | RS232/RS485(Standard) GPRS/WIFI(Optional) |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -15°C to 60°C |
