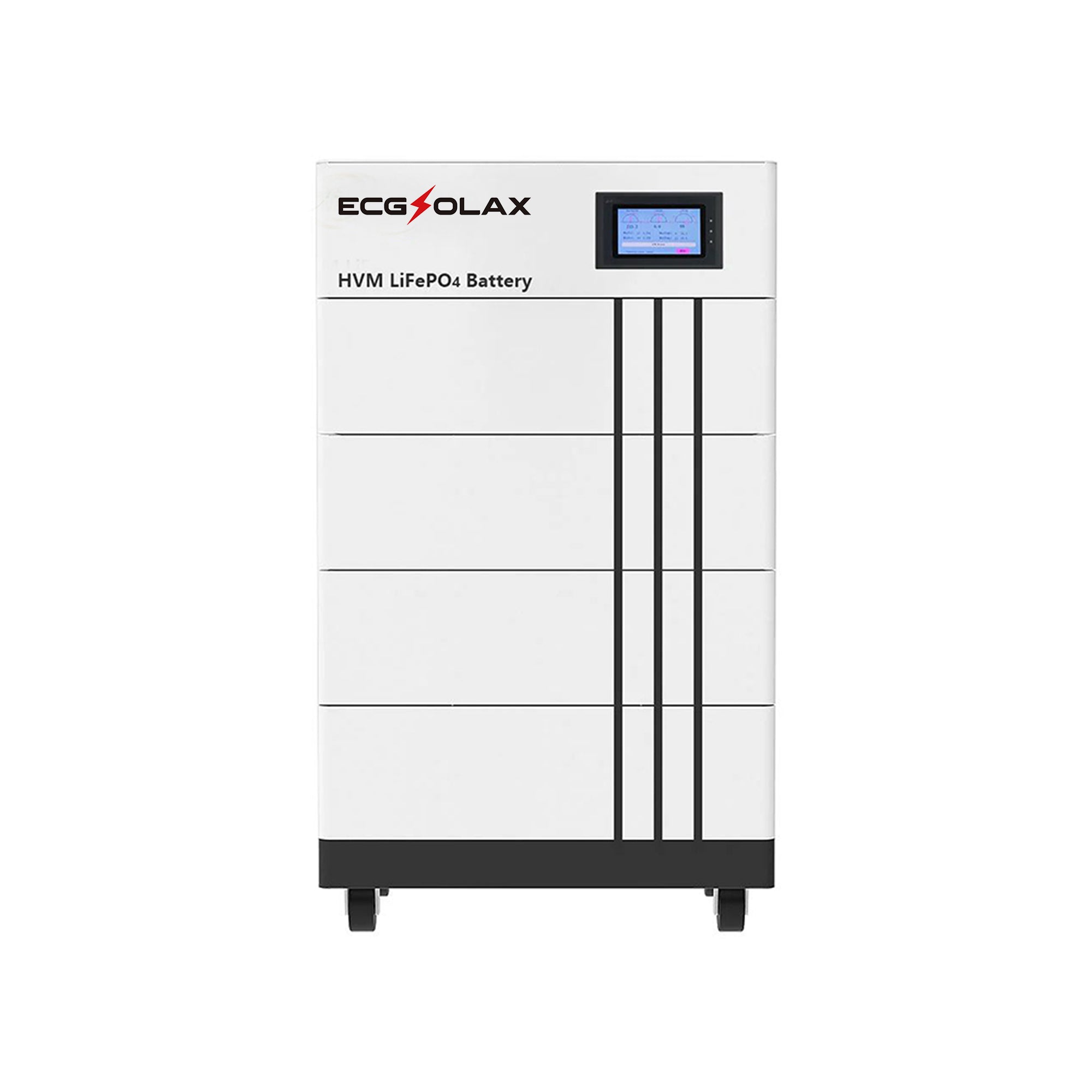

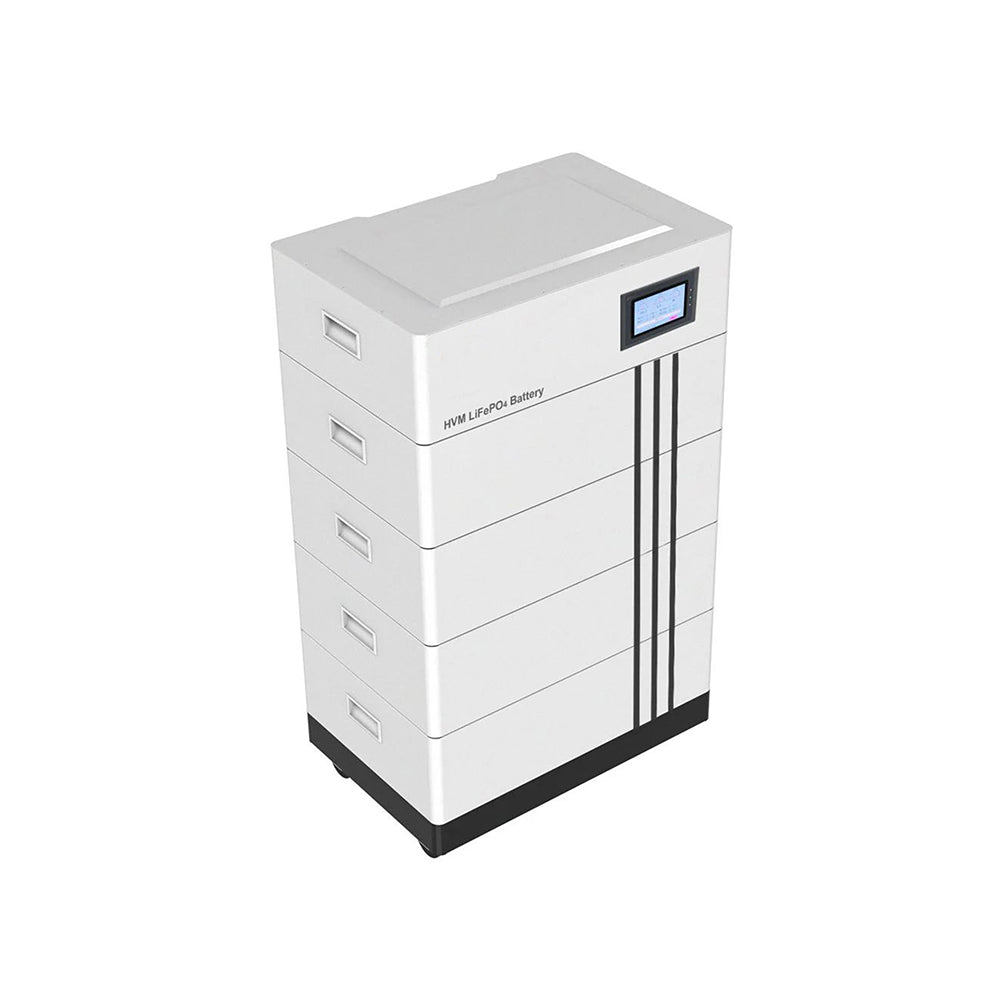

19.2KWH 48V /100Ah/ 200Ah/ 300Ah /400Ah BMS Solar Energy Storage System Lifepo4 LithiumBattery Pack
Description
It’s a high Voltage LiFePO4 BATTERY with energy 19.2kwh, is Perfect for emergencies and off-grid living. Unparalleled efficiency and safety, high-voltage series connection and Grand A Lithium Iron Phosphate (LFP) technology. The high-voltage battery covers the energy demand of a single machine from 9.6KWH to 19.2KWH, and the battery capacity can be expanded by adding battery modules in series.
Features
1. Capable of High-Powered Emergency-Backup and Off-Grid Functionality;
2. Highest Efficiency Thanks to a Real High-Voltage Series Connection;
3. The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use;
4. Grand A Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
5. Compatible With Leading High Voltage Battery Inverters;
6. Highest Safety Standard.
Specification
Number of Modules | 4 |
Battery Capacity | 100Ah |
Battery Energy | 19.2KWh |
Size(L×W×H) | 574×395×970mm |
Weight | 226 |
Standard Charge/Discharge Current | 100A |
General | |
Battery Type | Lithium lron Phosphate (LFP) |
Nominal Voltage | 48V |
Operating Voltage Range | 40-54.7V |
lP Protection | lP54 |
installation | Floor installation |
Operation Temperature | -10~60°C |
Features | |
BMS Monitoring Parameters | SOC, System voltage,current, cell voltage, cell temperature, PCBA temperature measurement |
Communication Port | CAN |
Waranty | 3 years |
Grade A quality LiFePO4 battery | more than 6000 cycles in 80% DOD @25°C |
Battery discharge battery charge |
-10°C~60°C, 0°C~60°C |
Compatible with 90~400V high voltage inverter/UPS |
