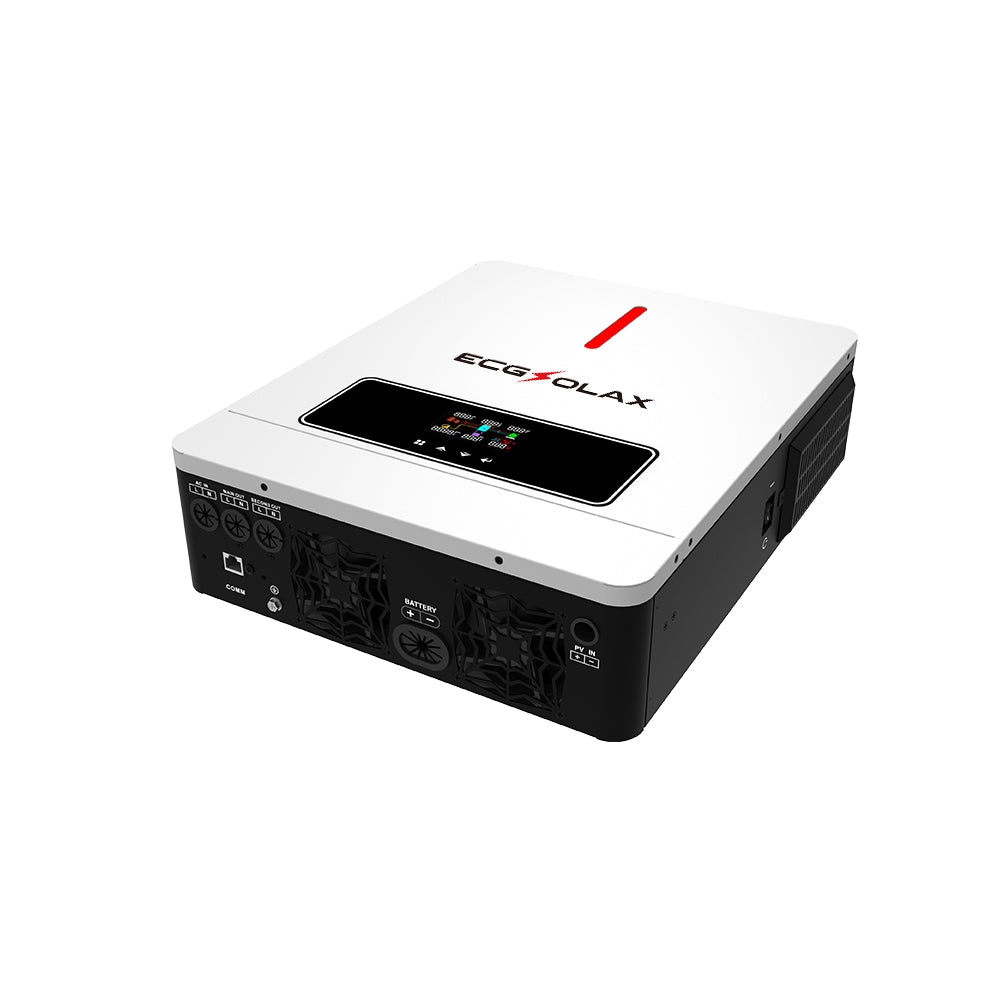

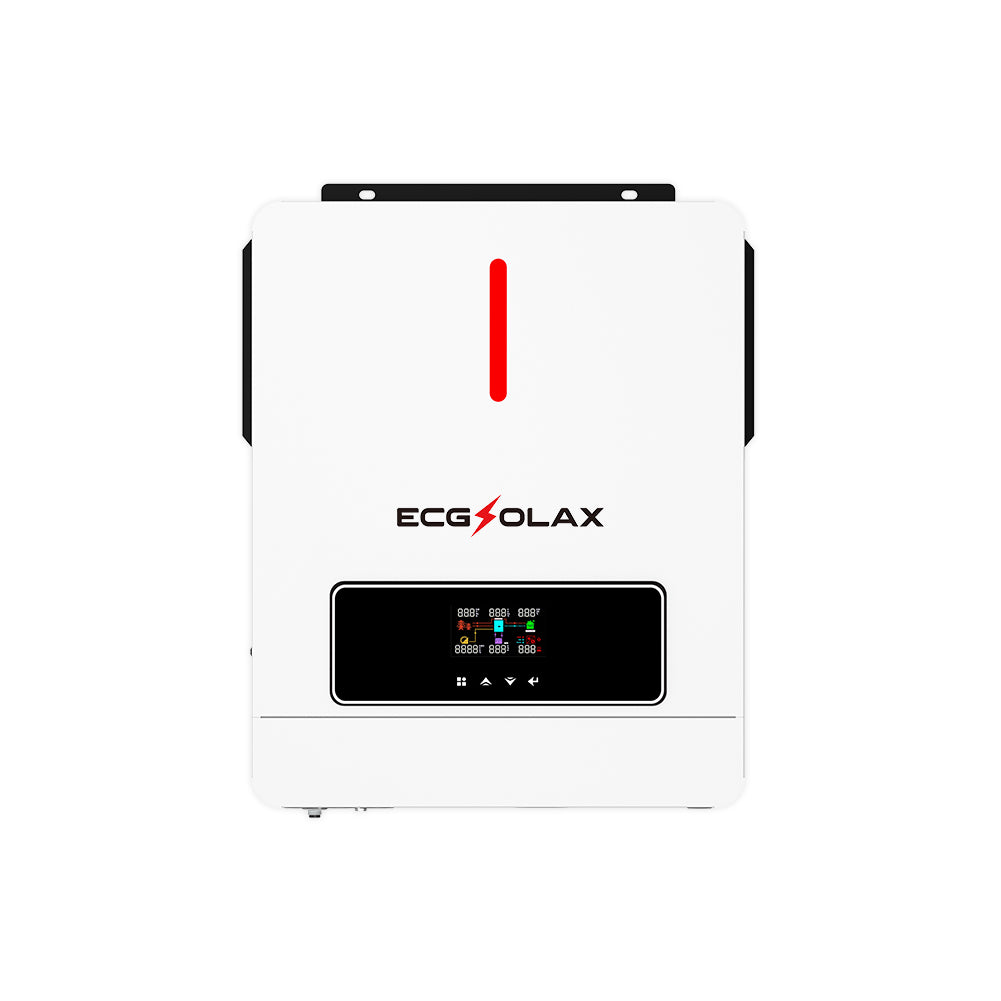

4200W DC 24V Single Phase AC 220V Pure Sine Wave All-in-One Solar Inverter

4200W DC 48V Single Phase AC 220V Pure Sine Wave All-in-One Solar Inverter

Description

Our 4200W All-in-One Solar Inverter is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features

1. Pure sine wave inverter
2. Configurable input voltage range for home appliances and personal computers via LCD setting
3. Configurable battery charging current based on applications via LCD setting
4. Configurable AC/Solar Charger priority via LCD setting
5. Compatible with mains voltage or generator power
6. Auto restart while AC is recovering
7. Overload/ Over temperature/ short circuit protection
8. Smart battery charger design for optimized battery performance
9. Cold start function

Specification

Phase	1-phase
Maximum PV Input Power	6200W
Rated Output Power	4200W
Maximum Solar Charging Current	120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	90VDC/120VDC
Maximum DC Voltage	60VDC~500VDC
Number Of MPPT Trachers/Maximum Input Current	1/27A
GRID OUTPUT(AC)
Nominal Output Voltage	200/230/240VAC
Output Voltage Range	195.5~253VAC
Nominal Output Current	18.2A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency(Solar/AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	4200W
Maximum Main Load	4200W
Maximum Second Load(Battery mode)	1200W
Main Load Cut Off Voltage	22VDC
Main Load Return Voltage	26VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC / 180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	30A
Nominal Operating Frequency	50/60Hz
Surge Power	8400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Wavefrom	Pure sinewave
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	24VDC
Maximum Solar Charging Current(Solar to AC)	120A
Maximum AC Charging Current	100A
PHYSICAL
Dimension,D X W X H	110*334*423
Net Weight(kgs)	9
INTERFACE
Communication Port	RS232/GPRS/WIFI
ENVIRONMENT
Operating Temperature	-10°C to 55°C



COMPATIBLE WITH VARIOUS BATTERIES

Powerful versatility, it is ready for Gel, AGM, Lithium-iron Phosphate (LI), and programmable for custom batteries through the USER type.



PROTECT YOUR ELECTRONICS

Advanced Pure Sine Wave technology provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, which is especially suitable for sensitive electrical appliances.

SAFETY PROTECTION

Under-voltage / Overvoltage / Overload / Overheating / Short Circuit Protection.
