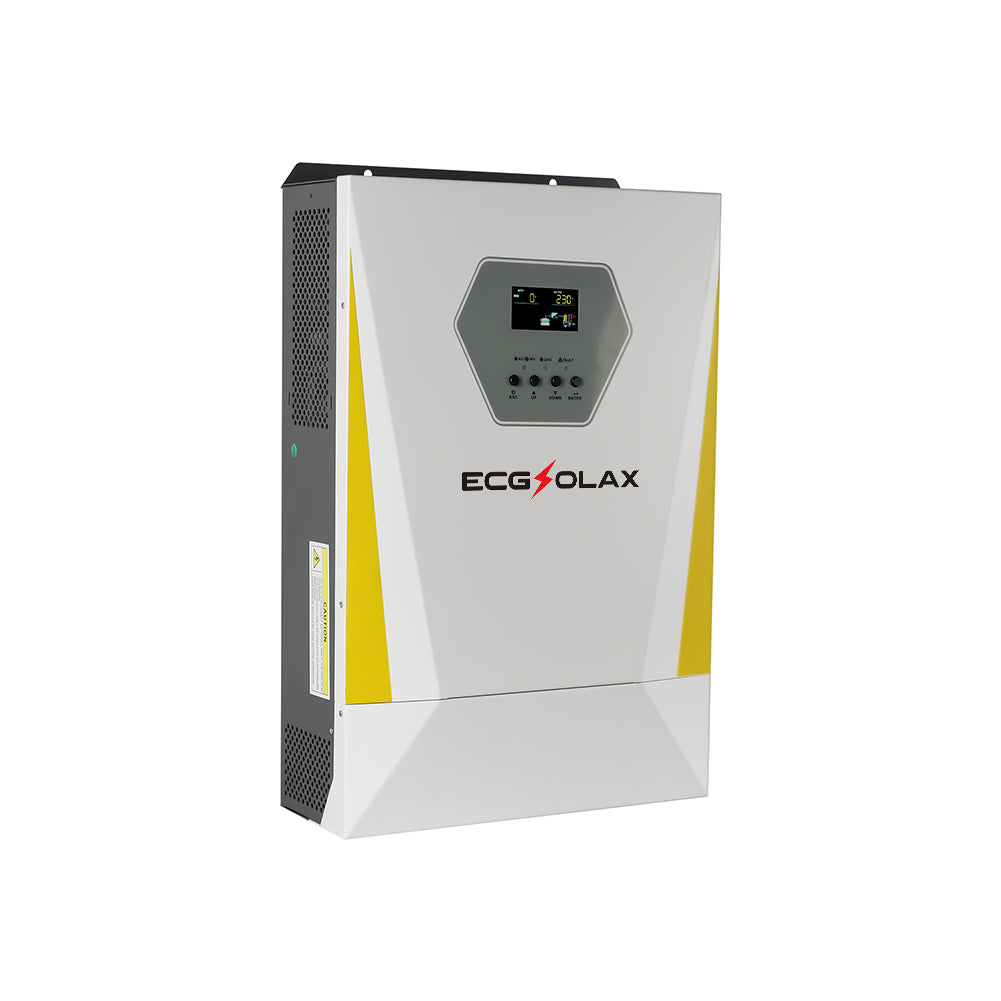

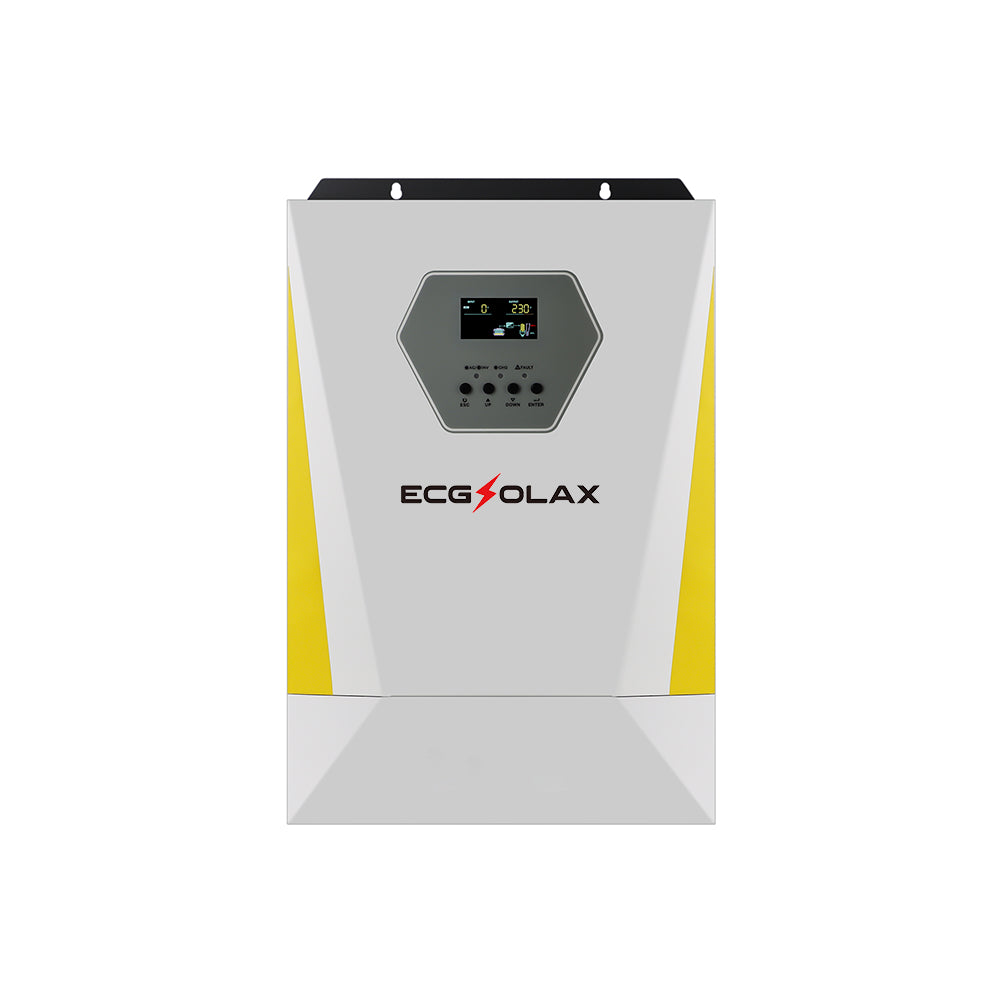

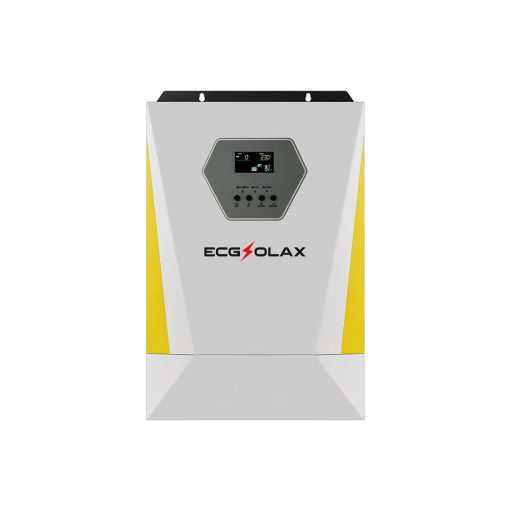

6200W Parallel 9pcs MPPT Hybrid Solar Charger Inverter DC 48V Single Phase AC 220V
Features：
* Pure sinewave inverter
* Configurable input voltage range for home appliances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting
* Configurable AC/Solar Charger priority via LCD setting
* Compatible to mains voltage or generator power
* Auto restart while ACis recovering
* Overload/Overtemperature/short circuit protection
* Smart battery charger design for optimized battery performance
* Cold start function
Specification：
| Input | |
| Input Sources | L+N-PE |
| Rated Int put Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V(APL Model) or 170-280VAC+3V(UPS Model) |
| Frequency Range | 50Hz/60Hz(Auto Adaptive) |
| Output | |
| Rated Capacity | 6200W |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50Hz/60Hz±0.1% |
| Waveform | Pure sinewave |
| Transfer Time(adjustable) | Computers(UPS Model) 10ms， Appliance(APL Mode I) 20ms |
| Peak Power | 12400W |
| OverLoad Abilty |
Battery Model： 21s@105%-150%Load 11s@150%-200%Load 400ms@>200%Load |
| PeakE ficiency(battery Mode) | 98% |
| Battery | |
| Battery Voltage | 48VDC |
| Constant Charging Voltage(Adjustable | 56.4VDC |
| Float e Charging Voltage(Adjustable) | 54VDC |
| Charges | |
| PV Charging Model | MPPT |
| MAX PV Input Power | 6200W |
| MPPT Tracking Range | 120-500VDC |
| Best Voltage | 300-400V |
| MAX PV Input Voltage | 500VDC |
| MAX PV Charging Current | 100A |
| MAX AC Charging Current | 80A |
| MAX Charging Current | 120A |
| Display | |
| LCD Ds pay | Display Running Mode/Loads/Input/Output etc. |
| Interface | |
| RS232 | BaudRate 2400 |
| Communication Port | Lithium Battery BMS Communication Card Wifi Card, Dry Contact |
| Parallel Connect Interface | With Parallel |
| Max. parallel | 9pcs |
| Environment | |
| Operating Temperature | -10FCto559C |
| Humidity | 20%-95%(Non-condensing) |
| Storage Temperture | -15to60*C |
| Altitude | AltixdeNotOver1000m， Derating over 1000m， Max4000m， Refer to IEC 62040 |
| Noise | ≤50db |
