Description

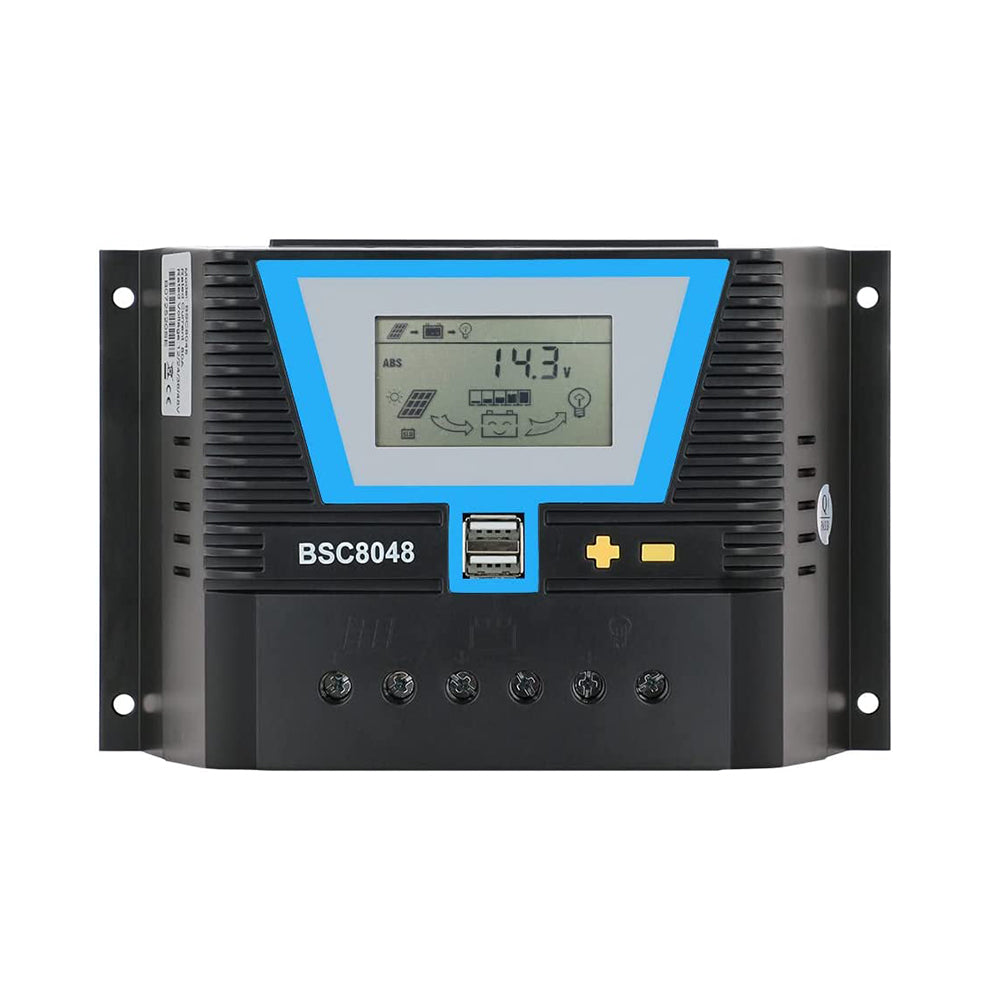

Ecgsolax 80Amp PWM Solar Charge Controller can be compatible with 12V 24V 36V 48V solar system, and it has auto Dual USB Output, this 30a Charge Controller Regulator is fit for Lithium/Lead-Acid Battery.
Features
1. 80amp PWM solar controller, 12v 24v 36v 48v DC AUTO
2. 12V system, Max solar power up to 960W;
24V system, Max solar power up to 1920W;
36V system, Max solar power up to 2880W;
48V system, Max solar power up to 3840W;
3. Intelligent 4 stages PWM charge controller: Bulk, Absorption, Equalize, Float;
4. Compatible batteries type: Lead-acid battery (Sealed, Gel, Flooded) ;Lithium battery (LiCoMnNiO2, LiFePO4);
5. Rich LCD display with Back-lighting shows device’s operating data and working condition
6. Double USB output 5V/2A, Automatic temperature compensation and accumulated function of charge and discharge KWH;
Specification
| PWM Solar charge controller-80amp | |
| Battery Voltage/System Voltage | 12V/24V/36V/48V Auto |
| Max PV Open Circuit Voltage | 100V |
| Self-consumption | ≤30mA |
| Battery Types | Sealed Battery (Default), Gel, Flooded, Lead-Acid User-defined, LiFePO4: 3.2V-4S /8S /12S /16S, LiFePO4: 3.2V-5S /10S /15S /20S,LiCoMnNiO2: 3.7V-3S /6S /9S /12S,LiCoMnNiO2: 3.7V-4S /8S /12S /16S, Lithium User-defined Battery |
| Rated Charge/discharge Current | 100A |
| MAX Solar Panel Power | 960W when 12V system; 1920W/24V; 2880W/36V; 3840W/48V; |
| Temperature Compensation | -4mV/℃/2V (25℃) |
| Protection Category | IP32 |
| Humidity | 95%, no-condensing |
| Terminals | 4AWG/25mm² |
| Mounting Hole Size | 190*104mm-Φ5mm |
| Dimension | 200*132*62mm |
