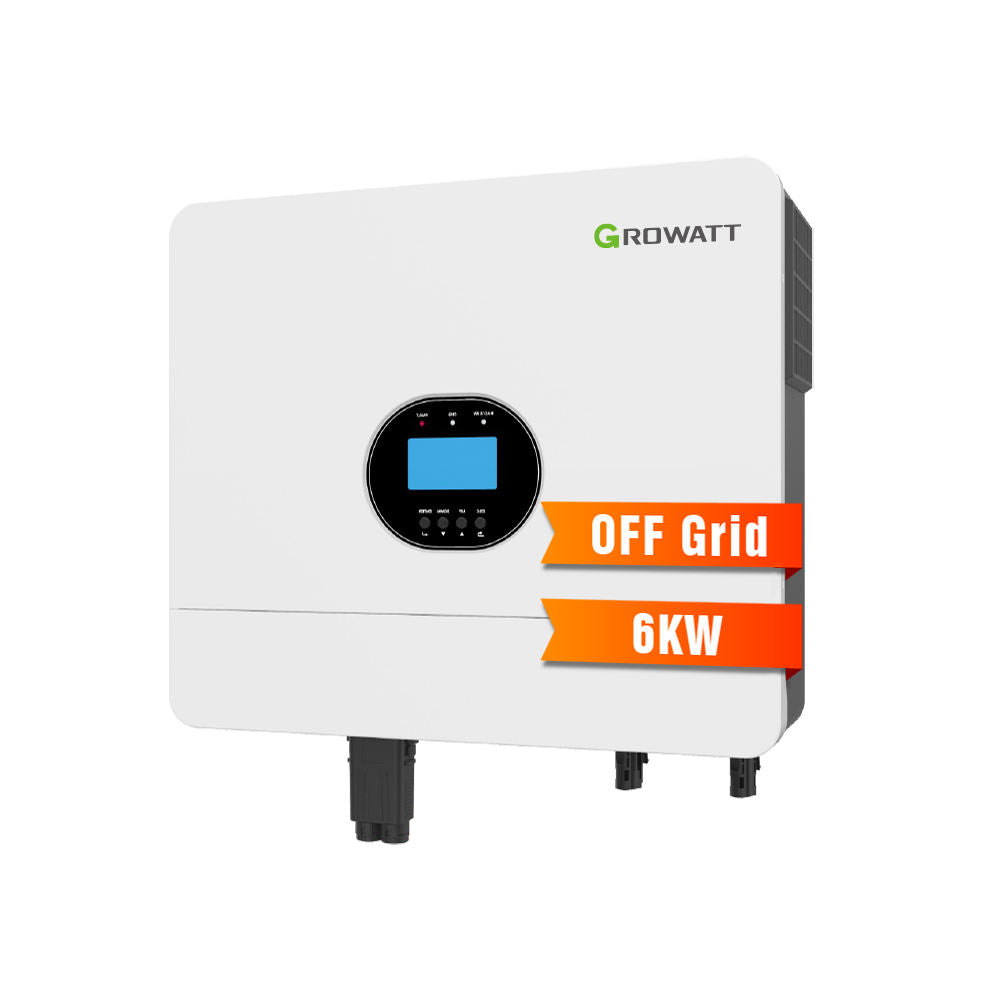

Growatt 6000W Hybrid Solar Inverter 48V 220V With MPPT 100A

Description

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high-frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

Features

1. Rated power 6KW , power factor 1

2. MPPT ranges 120V~430V, 450Voc

3. High-frequency inverter with small size and lightweight

4. Pure sine wave AC output

5. Solar and utility grid can power loads at the same time

6. With CAN/RS485 for BMS communication

7. With the ability to work without battery

8. Parallel operation up to 6 unit(only with battery connected)

9. WIFI/GPRS remote monitoring (optional)

10. PV and Grid power the load jointly if PV energy unsufficient

11. Flexibly schedule the Inverter charging and discharging time

Package Including：

1PC Solar Inverter Charger

1PC User Manual (English)



Specification

MODEL	SPF 6000 ES Plus
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	6000W
Parallel Capability	6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC+5% @50/60Hz
Surge Power	12000W
Efficiency(Peck)	93%
Wave Form	Pure sine wave
Transfer Time	10ms typical, 20ms Max
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51+1Hz
SOLAR CHARGER
Maximum PV Array Power	8000W
MPPT Range@ Operating Voltage	120-450VDC
Number ofIndependent MPPT Trackers/Strings Per MPPT Tracker	2 /1
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Solar Charging Current	100A
AC CHARGER
Charging Current	80A
AC Input Voltage	230VAC
Selectable Voltage Range	170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances)
Frequency Range	50/60Hz(Auto Sensing)
PHYSICAL
Protection Degree	IP20
Dimension(W/H/D)	330/485/135mm
Net Weight	19kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C-55°C
Storage Temperature	– 15°C-60°C
