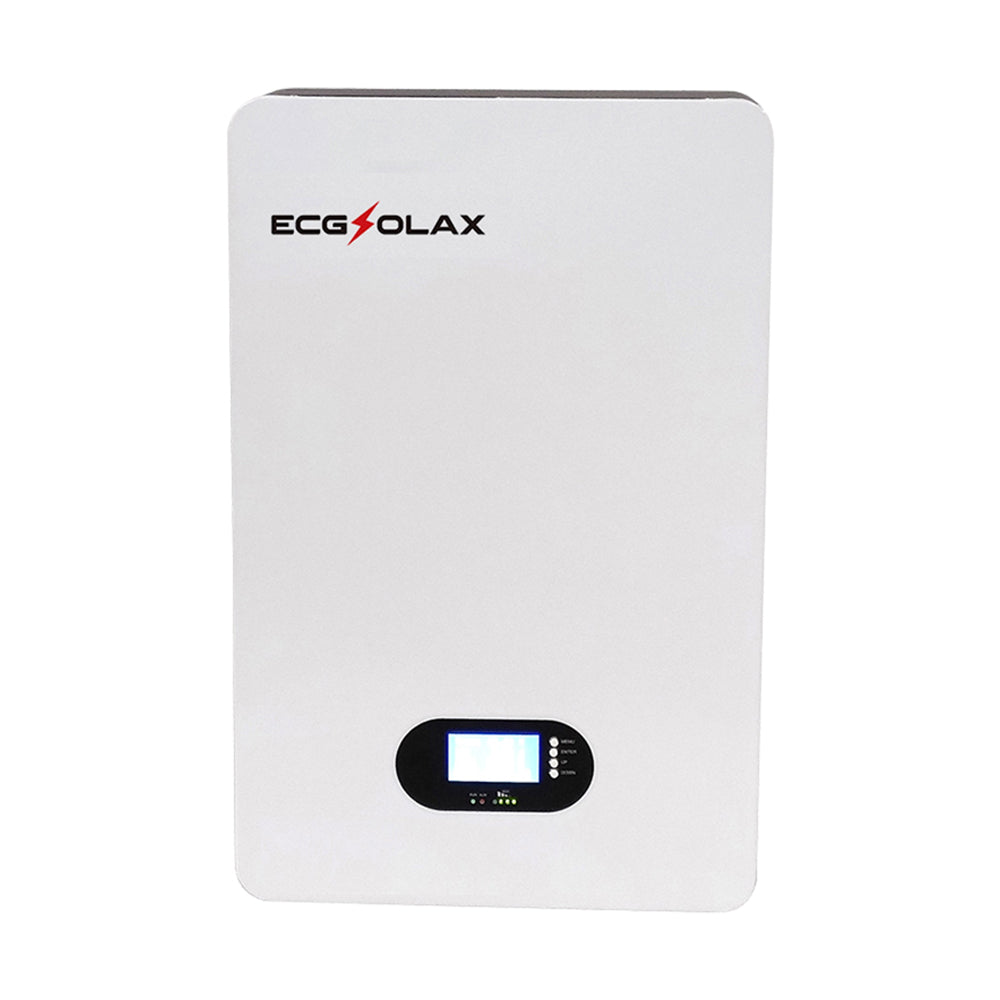

Powerwall 200Ah 51.2V LiFePO4 Energy Storage Battery
Description
The LiFePO4 battery is a smart battery to match all off-grid and hybrid solar inverter 51.2Vdc. When the battery needs to be used in parallel, the maximum connection is 15 units. And we recommend 2-8 units according to application.
Features
1.Outside large LCD screen to read the real-time charge and discharge data.
2.It adopts high-performance LiFePO4, to assure a much higher safety performance and a longer service life.
3.It adopts air cooling to improve product reliability
4. The energy storage battery comes with foot pads & wall brackets, to satisfy different installation and usage occasions requests.
5. Multiple protection functions to assure the safety of the Lithium batteries.
6.The output is very stable, perfect to power different loads inside the voltage range.
7. 15 independent units can be used in a parallel ray.
Specification
Basic Characteristics | |
Model | KOP-LV10L-V1 |
Nominal Voltage | 51.2VDC |
Nominal Capacity | 200Ah |
Effciency | ≥96% |
lnner Resistance | 7mΩ |
Cell Type | LiFePO4 |
Energy | 10.24KWh |
Charging Characteristics | |
Max. Charge Voltage | 58.4V |
Standard Charging Current | 50A |
Max.Continuous Charging Current | 100A |
Discharge Characteristics | |
Standard Discharge Current | 100A |
Continuous Discharge Current | 100A |
Peak Discharge Current | 150A(3S) |
Discharge Cut-off Voltage | 42.0V |
Environmental Requirements | |
Charge Temperature Range | 0~45°C |
Discharge Temperature Range | -15°C~65°C |
Storage Temperature Range | 0~45°C |
Storaqe Humidity | 60±20%HR |
Mechanical Characteristics | |
Size(L×W×H) | 830*500*145mm |
Package Size (L×W×H) | 920*550*165mm |
Shell Material | SPCC |
Net Weight | 85kg |
Gross Weight | 108kg |
Package Method | 1pcs per carton |
Others Characteristics | |
Cycle Life | ≥6000 times |
Self Discharge | 2% per month |
SOC Indication | LED Light & LCD Screen |
Communication Protocol | RS485/CAN |
Protections | OVP/UVP/OCP/OTP/UTP/SCP etc. |
Protection grade | IP21 |
Matching Inverter | Growatt, Goodwe, Deye, Luxpower,Victron,EG4 etc. |
